Aberrant VQSLOD scores

FredericFFredericF Member
edited May 31 in Ask the GATK team


I recently reanalyzed a large number (>10,000) of targeted exome sequencing bam files using GATK following the gatk4-germline-snps-indels cromwell workflows (haplotypecaller-gvcf then joint-discovery). (The bam files were produced a couple of years ago using BWA 0.7.10, Picard 1.123 and GATK 3.2-2 in a pipeline that included trimming, alignment (bwa), indel realignment, fixing read mates, marking duplicates and base quality recalibration.)

In the results, I noticed many deletions that felt unexpected. Looking at the bam files for those deletions, I find no read that overlap the deletion (although there are clipped reads that stop at the called deletion point). Looking more closely at the INFO field, I noticed that they have aberrant VQSLOD scores (VQSLOD score > 2e12). There is quite a clear gap in score between the rest of the loci (vqslod < 40) and those that I call aberrant (vqslod > 2e12). All the loci with aberrant vsqlod scores are indels.
Is this a known bug? What could lead to this?

Many thanks for your help!

Post edited by FredericF on


  • bhanuGandhambhanuGandham Cambridge MAMember, Administrator, Broadie, Moderator admin
    edited June 3

    Hi @FredericF

    You are using a very old version of GATK Haplotypecaller that we do not support. Please see the updated gatk4-germline-snps-indels workflow with updated tools. Please let me know if you still see the error after updating the tools.

  • FredericFFredericF Member

    Hi Bhanu,

    HaplotypeCaller version used was is it really unsupported already? The gatk4-germline-snps-indels workflow used was forked from github this spring.

  • bhanuGandhambhanuGandham Cambridge MAMember, Administrator, Broadie, Moderator admin

    @FredericF I misread the question and thought you were using GATK 3.2-2.

    Would you please post 1) vcf records and 2) IGV screenshots of bam and bamout for some of these regions.

  • FredericFFredericF Member

    Thanks for getting back.

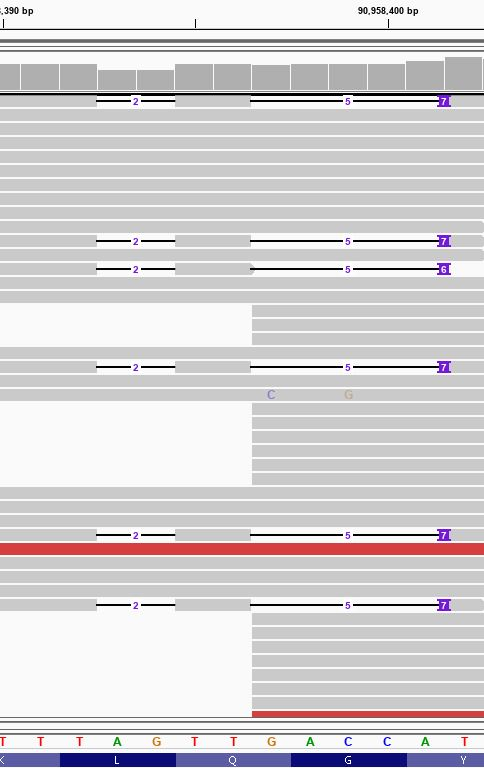

    Here is a screenshot of the top of the bam for the region:

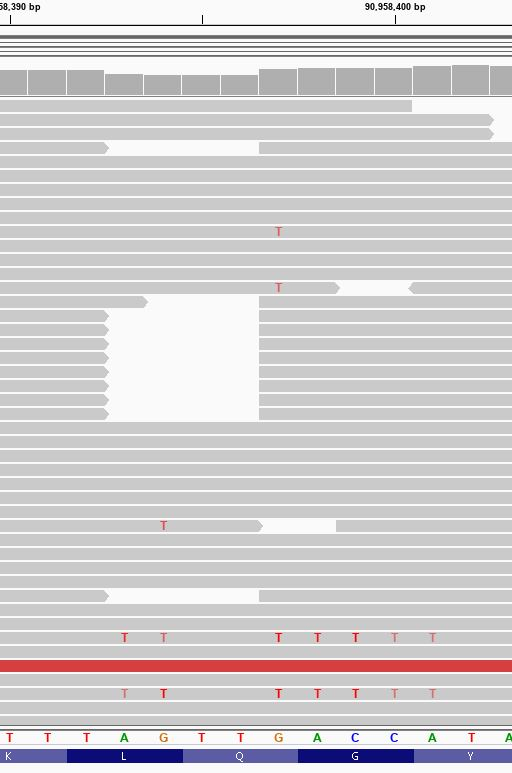

    Here is the top of the bamout for the same region:

    Here are the calls for the region. Notice the very extreme VQSLOD.
    8 90958393 . A *,ATTTT,ATTTTTT 167.99 PASS AC=1,0,0;AF=0.029,3.94e-05,3.94e-05;AN=2;BaseQRankSum=-6.339;DP=625604;ExcessHet=52.0777;FS=77.979;InbreedingCoeff=-0.0146;MLEAC=758,1,1;MLEAF=0.03,3.94e-05,3.94e-05;MQ=59.28;MQRankSum=-5.336;QD=0;ReadPosRankSum=-4.127;SOR=17.535;VQSLOD=3.42415e+18;culprit=SOR GT:AD:DP:GQ:PGT:PID:PL:PS 0|1:82,25,0,0:107:99:0|1:90958392_TAG_T:704,0,3839,951,3914,4865,951,3914,4865,4865:90958392
    8 90958394 . G *,T 1959.05 VQSRTrancheSNP99.95to100.00 AC=1,0;AF=0.028,0.0005911;AN=2;BaseQRankSum=-6.147;DP=626454;ExcessHet=15.8314;FS=77.979;InbreedingCoeff=-0.0116;MLEAC=740,13;MLEAF=0.029,0.0005123;MQ=59.35;MQRankSum=-4.96;QD=0.02;ReadPosRankSum=-4.123;SOR=16.705;VQSLOD=-209.9;culprit=SOR GT:AD:DP:GQ:PGT:PID:PL:PS 0|1:82,25,0:107:99:0|1:90958392_TAG_T:704,0,3839,951,3914,4865:90958392
    8 90958396 . TGACCATAATCATCA TTAATCATCA,TATAATCATCA,TTCATCA,T 234379 PASS AC=1,0,0,0;AF=0.027,7.881e-05,3.94e-05,0.000394;AN=2;BaseQRankSum=-6.068;DP=659901;ExcessHet=45.945;FS=49.361;InbreedingCoeff=-0.0282;MLEAC=682,2,1,7;MLEAF=0.027,7.881e-05,3.94e-05,0.0002758;MQ=59.44;MQRankSum=-6.855;QD=2.02;ReadPosRankSum=-1.705;SOR=18.552;VQSLOD=5.15068e+18;culprit=SOR GT:AD:DP:GQ:PGT:PID:PL:PS 0|1:128,25,0,0,0:153:99:0|1:90958392_TAG_T:563,0,6415,951,6490,7442,951,6490,7442,7442,951,6490,7442,7442,7442:90958392
    8 90958397 . GACCATAATCATCA *,TACCATAATCATCA 170.45 PASS AC=1,0;AF=0.027,3.94e-05;AN=2;BaseQRankSum=-4.462;DP=672555;ExcessHet=47.486;FS=52.177;InbreedingCoeff=-0.0225;MLEAC=718,1;MLEAF=0.028,3.94e-05;MQ=59.34;MQRankSum=-6.259;QD=0;ReadPosRankSum=-0.405;SOR=18.553;VQSLOD=5.92821e+18;culprit=SOR GT:AD:DP:GQ:PGT:PID:PL:PS 0|1:128,25,0:153:99:0|1:90958392_TAG_T:563,0,6415,951,6490,7442:90958392
    8 90958400 rs200564603 C *,T 2101.95 VQSRTrancheSNP99.95to100.00 AC=1,0;AF=0.026,0.0003152;AN=2;BaseQRankSum=-3.06;DB;DP=660349;ExcessHet=25.8301;FS=52.177;InbreedingCoeff=-0.0189;MLEAC=678,8;MLEAF=0.027,0.0003152;MQ=59.44;MQRankSum=-5.877;QD=0.02;ReadPosRankSum=0.921;SOR=18.476;VQSLOD=-243.2;culprit=SOR GT:AD:DP:GQ:PGT:PID:PL:PS 0|1:128,25,0:153:99:0|1:90958392_TAG_T:563,0,6415,951,6490,7442:90958392

    From the original bam file, I don't see a lot going on. From the bamout, I see a hard region to assess. If this is not simply a bug, I wonder where the confidence could come from to provide such scores.

    Many thanks for your help!


  • bhanuGandhambhanuGandham Cambridge MAMember, Administrator, Broadie, Moderator admin

    Hi @FredericF

    I spoke to our dev team and this is what they recommended:
    Try trouble shooting by making some plots by using --rscript_file option of VariantRecalibrator which would give negative/positive model distributions for different annotations and seeing if these distributions make sense for given annotation values.
